Product Features
Commercial-grade twin cylinder engine
27HP Kohler Confidant commercial grade twin cylinder engine with EFI (Fuel Injection)
Heavy-duty blade spindles
The blade spindles used on the AcrEase mowers are built out of heavy-duty welded steel hubs, 30mm (1-3/16") steel shafts, machined steel blade holders and large sealed ball bearings.
Crank height adjustment
The cutting height can quickly and easily be adjusted from 2"-8" with the two crank height adjustment system.
Steel Top Plate
The main deck is built out of 10 GA (.135") thick steel with a 1/4" thick steel top plate for reinforcement. An additional 1/4" thick steel plate is welded in the blade spindle mounting location. The three layers of steel in the blade spindle mounting area add up to just over 5/8" thick
Twin blade design
Unique twin blade design provides more of a mulch action that reduces the size of the clippings and reduces bunching.
Electric clutch
The blades are engaged with an electric clutch which is activated by simply pulling a switch. Electric clutches can extend the life of the belt and reduce overall belt maintenance.
Farm-style clevis hitch
The tow bar features a farm clevis type connection. This system provides more degrees of motion than most types of hitching systems. This is necessary to prevent binding in rough uneven terrain.
Extended fuel capacity
Large 3-1/4 gallon fuel tank that provides 3 to 3-1/2 hours of run time
Product Specifications

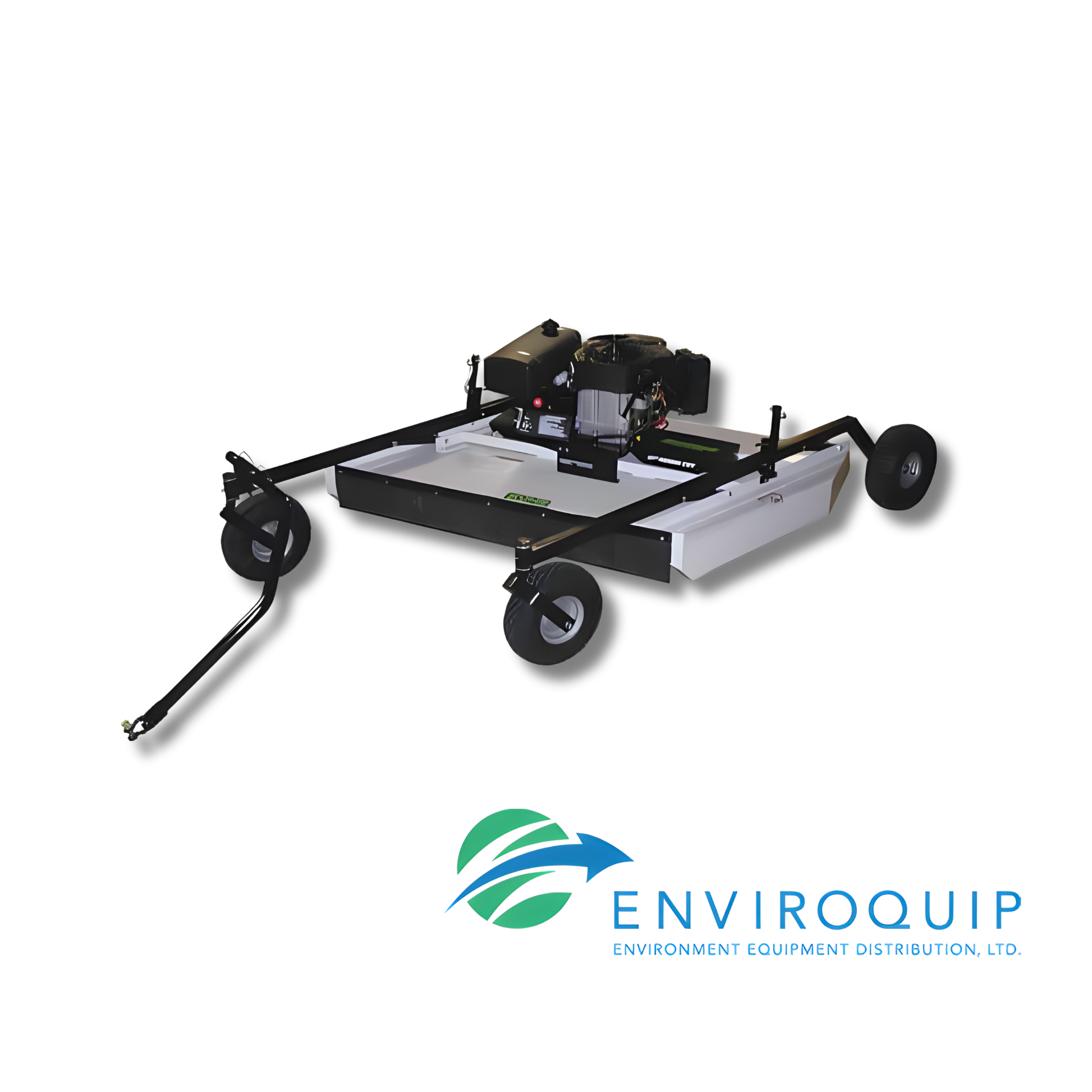

| MODEL | MR55KEI |
|---|---|
| Class Mower | Rough Cut (Rear Discharge) |
| Engine Make | OHV Kohler Commercial |
| Engine Model | Confident Twin EFI |
| Engine HP | 27 |
| Lubrication Method | Pressure With Filter (Low Oil Pressure Shut-Off Included) |
| Air Filter Type | Cyclonic Air Filtration System |
| Electric Start (Battery not included) | Yes |
| Hour/Tach Meter | Optional |
| Number of Mower Blades | 2 × 30″ |
| Blade Tip Speed (ft/min) | 19,000 |
| Cutting Width | 57″ |
| Cutting Height | 2.0″ to 8.0″ by Two Cranks |
| Hitch | Direct Behind or Full Offset to Either Side |
| Blade Engagement Clutch | Electric Clutch |
| Deck Metal Thickness | 10 GA (.135″) |
| Deck Top Plate Thickness | Two 1/4″ Thick Plates (Blade Spindle Attachment Area) |
| Weight | 580 lbs |
| Pneumatic Fixed Rear Tires | 15/600×6, 4 Ply Tubeless (Flat Proof Option Available) |
| Pneumatic Front Tires on Casters | 5.30/4.50×6, 4 Ply Tubeless (Flat Proof Option Available) |
| Fuel Tank Size | 3 Gal. |
| Blade Spindles — Shaft Size | 30 mm (1-3/16″) |
| Blade Spindles — Bearing # | 6206-2RST |
| Drive Method | 1 B Section “V” Belt (Kevlar) |
| Warranty | 1 Year Commercial |
| Warranty – Engine | 3 Year Commercial |
| 2026 Suggested List Price | |
| Base Model (Including Tongue) | $9,823.39 |
| Optional Wetlands Kit | $1,014.59 |
| Optional Electric Lift Kit | $1,211.21 |
| Optional Floatation Kit | $566.29 |
(*FOB Mendota, IL)
*Prices do not include shipping costs and may vary in different locations.
*Kunz Engineering reserves the right to change specifications or discontinue products without notice.
Accessories & Attachments
Floatation Kit
Added deck support for uneven terrain
An extra front and back tire can be added to the center section of the mower deck.
- Great for mowing around ponds and on rough uneven ground where scalping would normally occur
- Clamping style receiver allows for adjustments from side to side with both the front and rear tires
- Pinned receivers make for quick kit removal when not needed
- Works on all existing and new rough cut mowers
Wetlands Kit
Extra tires and brackets for soft ground
The Wetlands Kit consists of an extra set of tires and mounting brackets.
- Great for wetlands or marshy areas that stay wet all year around
- Works well in combination with small personal amphibious vehicles and ATVs/UTVs with tracks
- Kit more than doubles the tire surface area in contact with the ground
- Easy to install. Works on all existing and new rough cut mowers.
- The rough cut mower will not float with the wetlands kit installed. Water greater than 2–3″ in depth should be avoided.
- With the Wetlands Kit installed the minimum cutting height is 3.5″–4″.
- Works on all existing and new rough cut mowers
Electric Lift Kit
On-the-go cutting height adjustment
The Electric Lift Kit consists of mounting hardware, brackets, electric actuator and wiring with remote control panel.
- Great for constantly changing terrain and grass/brush heights
- Allows for quick cutting height changes on the go from the seat of the tow vehicle
- Raise up and over rocks and logs with ease
- Heavy duty 1500 lb linear screw actuator made by Linak
- Works on all existing and new rough cut mowers
Specialty Hitching
Multi-mower towing configurations
A variety of hitching is available to pull multiple rough cut mowers in a couple different configurations.
Flat Proof Tire Option
Urethane foam tires for durability
Urethane foam flat proof tires can be purchased for both new and existing mowers.
